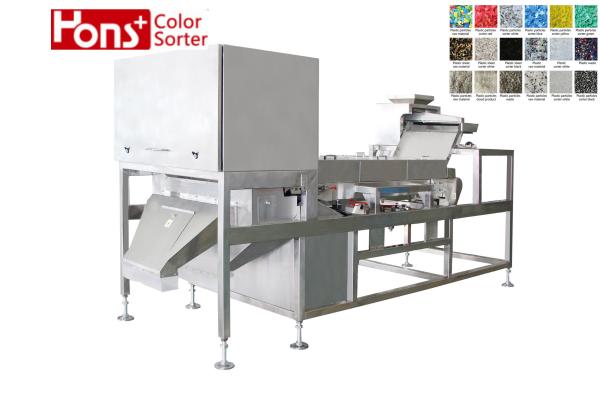

CCD cameraPlastic Bottle Particle Recycling Sorting Color Sorter Separator
Selection of materials
Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc. Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc. Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
Belt CCD color sorter machine parameters
Brand | Hons+ |
Sorting Accuracy(%): | ≥99.9 |
Carryover Rate(bad:good): | ≥12:1 |
Capacity:(kg/hour) | 400Kg-500Kg |
Voltage: | 220V/50Hz |
Weight(kg): | 2300 |
Diamension/Size (L*W*H)mm | 2920*1220*1720 |
Package: | Wooden Case |
Belt color sorter machine features 1. The color sorter adopts 5400 high-performance CCD sensor with a resolution of up to 0.02nm2. 2. The sorting machine adopts high-quality industrial special lenses specially designed and manufactured for rice color selection. 3. High-speed DSP technology provides fast detection and high recognition rate for the sorter. A special coarse-grained detection algorithm is designed. 4. The main control system effectively improves the control speed and color selection accuracy. 5. The whole machine adopts intelligent closed-loop control. 6. Adopt high-speed air valve, fast response, low power consumption and long service life. 7. The sorting machine adopts intelligent temperature and air pressure control technology to ensure that the whole machine is in the best running state.
Sorting perofrmance
About us
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
Add.: No.2 Yan'an Road, Baohe Industrial Area, Hefei, Anhui Province, China
